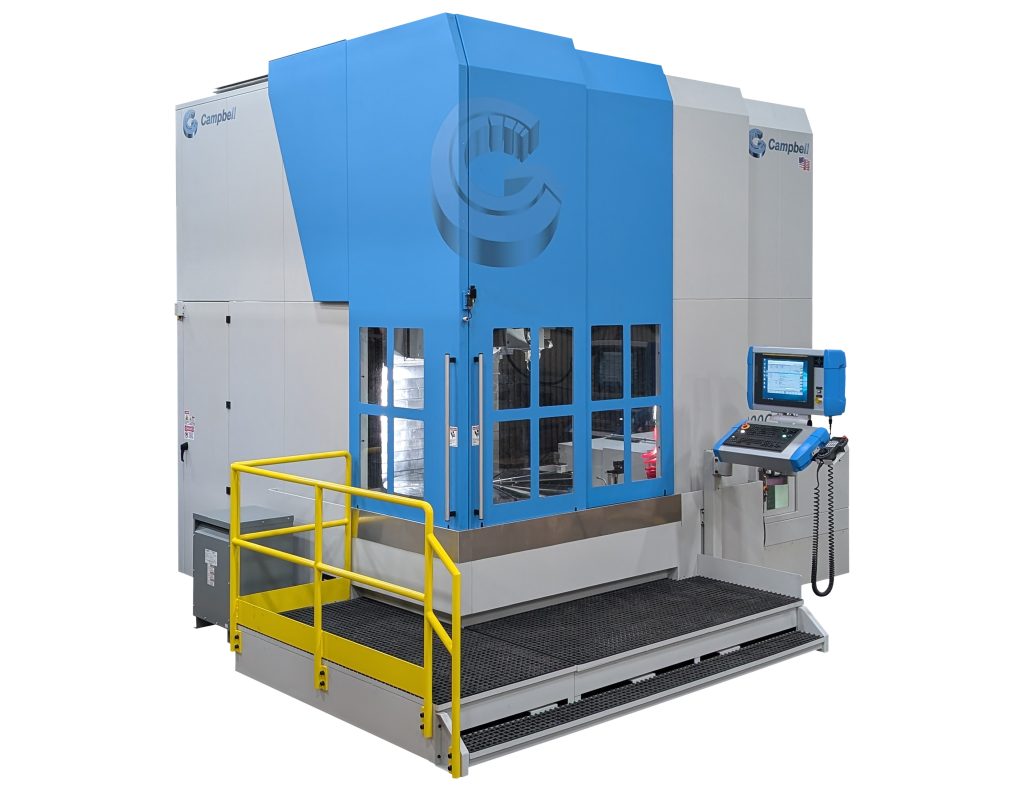

MODEL 1000C1000 – Vertical Grinder
Table Size
Max Part Height
Max Part Height
Swing Diameter
Spindle HP
Spindle RPM
Spindle RPM
Axes & Accuracy
Table Size
Spindle HP
Axes
Spindle HP
Axes
1143 mm
25-40 HP
1500-7500 RPM
X, 5 Microns (0.0002”)
Z, 5 Microns (0.0002”)
B, 2.5 Microns (0.0001")
C, 2.5 Microns (0.0001")
400x300mm
60HP
X, Y, Z
Previous
Next
STANDARD FEATURES
- Fanuc CNC Control
- Precision Roller Ways on all Axes
- Ability to use Any Abrasive (Super-Abrasive and Conventional)
- OD/ID Grinding Spindle
- X and Z Axes Linear Motor Technology
- Single Point Dresser
- Linear Glass Scales on all Axes
- Roller Style Table Bearing
- Full Enclosure
